Product details:

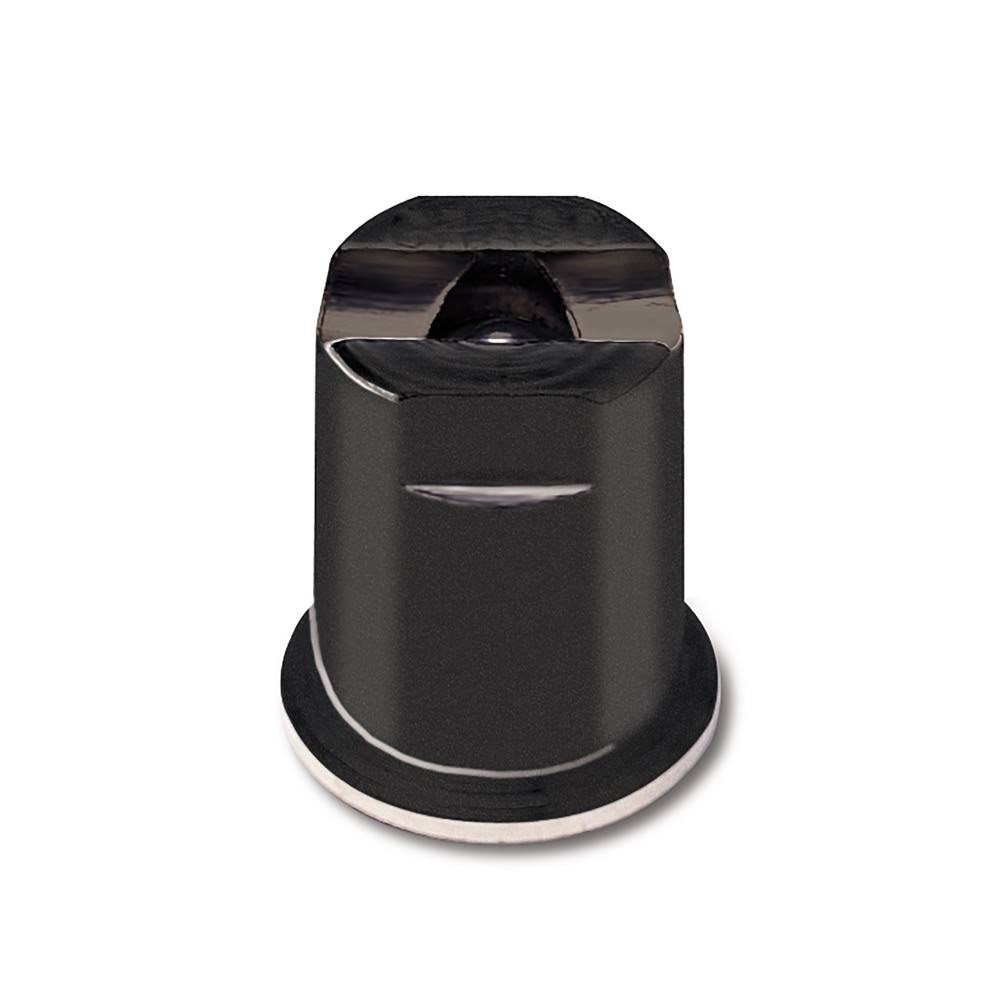

GRACO 163712 Fine Finish Flat Tip, 712 The 712 Fine Finish Flat Tip produces a 14 to 16 inch fan pattern and a 0.012 inch orifice. Specifications Compatible Material Lacquer, Varnish, Urethane, Fine Finish Material For Use With Silver Plus Airless Spray Gun Maximum Fan Width (in) 16 Maximum Flow Rate (GPM) 0.15 Maximum Working Pressure (psi) 3000 Minimum Fan Width (in) 14 Model Fine Finish Orifice Diameter (in) 0.012 Pattern Size (in) 14 to 16 Spray Pattern Fan Tip Type Airless Type Spray Tip Compatible Material Lacquer, Varnish, Urethane, Fine Finish Material For Use With Silver Plus Airless Spray Gun Maximum Fan Width (cm) 40.6 Maximum Fan Width (mm) 406 Maximum Flow Rate (L/min) 0.57 Maximum Working Pressure (bar) 207 Maximum Working Pressure (kPa) 20700 Minimum Fan Width (mm) 356 Model Fine Finish Orifice Diameter (cm) 0.0305 Orifice Diameter (mm) 0.3048 Pattern Size (mm) 355.6 to 406.4 Spray Pattern Fan Tip Type Airless Type Spray Tip
